SVF18N50PN Silan

Name: SVF18N50PN
Brand: Silan
SKU: SVF18N50PN_Silan
Availability: InStock
Rating: 5 (11 reviews)

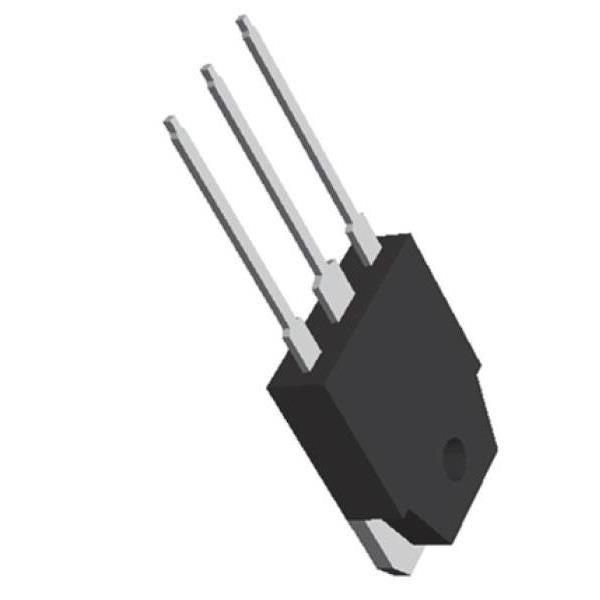

SVF18N50PN electronic component of Silan

Images are for reference only
See Product Specifications

Part No.	SVF18N50PN
Manufacturer:	Silan
Category:	MOSFETs
Description:	500V 18A 260mΩ@10V,9A 240W N Channel TO-3P MOSFETs ROHS
Datasheet:	SVF18N50PN Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 0.9697 ea
Line Total: USD 0.97

Availability - 4440
Ship by Fri. 06 Dec to Wed. 11 Dec

MOQ: 1 Multiples: 1
Pack Size: 1

SVF18N50PN More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

4440

Ship by Fri. 06 Dec to Wed. 11 Dec

MOQ : 1
Multiples : 1

1 : USD 0.9697
10 : USD 0.7853
30 : USD 0.7175
90 : USD 0.6271
510 : USD 0.5725
1200 : USD 0.5443

Specifications

Manufacturer
Silan Silan

Product Category
MOSFETs MOSFETs

Package
TO - 3P TO - 3P

Rohs
y y

Drain Source Voltage Vdss
500 V 500 V

Continuous Drain Current Id
18 A 18 A

Drain Source On Resistance Rdson@Vgs Id
260 mOhms @10V , 9A 260 mOhms @10V , 9A

Power Dissipation Pd
240 W 240 W

Gate Threshold Voltage Vgsth@Id
4 V @250uA 4 V @250uA

Reverse Transfer Capacitance Crss@Vds
7.15 pF @25V 7.15 pF @25V

Type
N Channel N Channel

Input Capacitance Ciss@Vds
2.32 nF @25V 2.32 nF @25V

Total Gate Charge Qg@Vgs
37.9 nC @10V 37.9 nC @10V

Operating Temperature
- 55 C ~ + 150 C @ (Tj) - 55 C ~ + 150 C @ (Tj)

Notes:- Show Stocked Products With Similar Attributes.
