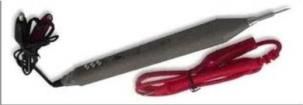

OPERATORS MANUAL MODEL 610 LOGIC PROBE (20MHz FREQUENCY DISPLAYABLE) MODEL 610B LOGIC PROBE WITH BEEPER TONE (20MHz FREQUENCY DISPLAYABLE) MODEL 615 LOGIC PROBE (50MHz FREQUENCY DISPLAYABLE) MODEL 620 LOGIC PULSER MODEL 625 LOGIC PROBE (50MHz FREQUENCY DISPLAYABLE) & LOGIC PULSER LOGIC PROBE (Model 610. 610B. 615. 625) INTRODUCTION The logic Probe is ideal for troubleshooting and analysis of logic circuits. It works as a level detector, a pulse detector, a pulse stretcher, and a pulse memory (model 610 & 610B only). It features include a. Circuit powered. b. LED indicators: Hi (red LED), Lo (green LED), and PULES/MEMORY (yellow LED) (model 610 & 610B only.) c. Logic Hi Lo PULSER with different beeper tone (model 610B only) d. Switch-selectable pulse detection or pulse memory function (model 610 & 610B only). e., Switch-selectable TTL or CMOS circuits. (model 610 & 610B only). OPERATION a. Attach red alligator clip to positive side of d.c, power supply of printed circuit board under test. b. Attach black alligator clip to negative side of d.c, power supply of printed circuit board under test. c. LED Display Pattern: MODEL 610 & 610B 610B 615 & 625 LED LED INPUT SIGNAL BEEPER Hi Lo PULSE Hi Lo Logic 1 z High tone z Logic 0 z Low tone z Bad Level or Open Circuit 1. Alternate and intermittently sound Square Wave <200KHz z z * z z 2. Mixed and intermittently sound z z Square Wave >200KHz * z z z Narrow High Pulse * Intermittently low tone z z z Narrow Low Pulse * Intermittently high tone z LED ON LED OFF LED may or may not be on. * Blinking LED, Intensity is proportional to the duty cycle of the signal observed. Note: If model 615 & 625 Lo LED lighted, when power supply voltage is upper 10V. This is normal condition, will not effect the logic probe features. d. After the PULSE/MEMORY Switch is placed in MEM position, the Pulse indicator (yellow LED) with latch on with the first transition (either rising or falling). Thereafter, as long as the probe is powered, the LED will remain on until reset by switching to PULSE position. (610 & 610B only). SPECIFICATIONS GENERAL: Operating Temperature .................................. 0C to 50C, 80% Relative Humidity Storage Temperature...................................... -20C to 65C, 75% Relative Humidity Weight............................................................. 610 & 610B 1.6 Ounces (45g) approx. 615 1.2 Ounces (35g) approx 620 1.4 Ounces (40g) approx. 625 1.76 Ounces (50g) approx. Dimensions..................................................... 8.2 Inches (21cm) Long X. 0.7 Inches (1.8cm) Wide X. 0.7 Inches (1.8cm) Deep. ELECTRICAL (At 235C, 75% Relative Humidity Maximum): Model 610 & 610B 615 & 625 Maximum Input Signal Frequency 20MHz 50MHz Input Impedance 1M 120K Operating Supply Range4V DC Minimum, 18V DC Maximum TTL: Logic 1 (Hi LED)>2.30.2V DC >3.00.25V Logic 0 (Lo LED)<0.80.2V DC <0.750.25V CMOS: Logic 1 (Hi LED)>70% Vcc10% >60% Vcc5% Logic 0 (Lo LED)<30% Vcc10% <15% Vcc5% Minimum Detectable Pulse Width30 Nanoseconds 10 Nanoseconds Maximum Signal input Protection220V AC/DC 70V AC/DC (for 15 seconds) (for 15 seconds) Power Supply Protection20V DC 20V DC Pulse Indicator Flash Time500ms LOGIC PULSER (Model 620 & 625) INTRODUCTION The Logic Pulser is a very effective tool for inspecting and repairing the logic circuits. It can be used directly to inject a signal into the logic circuits without removing the IC or breaking the circuits. The 100mA pulse output insures that the device under test will be pulsed, while the short 10 S duration of the output pulse makes sure that no damage will be done to the circuit under test. The logic Pulser output is changeable between 0.5 and 400Hz, making it suitable for use with either a logic probe or with an oscilloscope, also has an external sync input, which enables the user to synchronize the pulse output with an external signal, such as a computer clock circuit. OPERATION a. Attach red alligator clip to positive side of d.c, power supply of printed circuit board under test. b. Attach black alligator clip to negative side of d.c, power supply of printed circuit board under test. c. Setting the repetition rate switch to 0.5pps or 400pps. SPECIFICATIONS Sync Input Impedance ................................... 1M Pulse Rate....................................................... 0.5/400Hz Pulse Width..................................................... 10S Output Current................................................ 100mA sink/source Square Ware Output Current ......................... 5mA sink/source Power Supply Range...................................... 5 15V DC Power Supply Protection................................ 20V DC (30 seconds max.) Sync Input Protection..................................... 120V DC (30 seconds max.) Test Point Protection ...................................35V DC (30 seconds max.)
