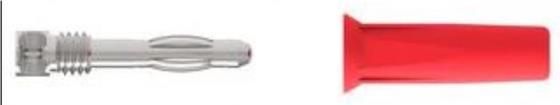

I gather a solder iron, (lead or lead-free) tin solder wire, a stranded or solid wire with the specifications below, and a tool to strip the wire. I strip the end of the wire on 7 mm typically (4 mm at least). 2.3 mm maxi. Specifications of the wire. 2.50 mm maxi. (approximately 14 AWG). 19 28 Strands. 7 mm typically (4 mm mini.). 6.3 mm maxi.. Jacket(s). Cross-section of the plastic part, If the plastic part is screwed on the metal part then I unscrew it and depth of the wire strain-relief : 15 mm. separate them. I slip the stripped end of the wire into the hole of the metal part until it abuts. Metal part. Plastic part. With a solder iron I solder the wire to the metal part (it complies with both lead-free tin and lead-tin). I insert the metal part into the plastic part I push the metal until it abuts against the plastic part. 11 I hold the metal part, I hold the plastic part, I rotate to screw until the metal part abuts against the plastic part (2.3 N.m maxi. torque). The 4 mm banana male The design and the Room to solder Hole to slip the connection complies material of the the wire to the strands of the with the 4 mm banana lantern contact metal part. wire into. sockets of the spring meet the worldwide most need of low famous manufacturers. resistance and reliability. Fichier DataSheet TENMA 1010 . 11/10/2016. Indice A. Information in this publication supersedes all earlier versions. Specifications subject to change without notice. 2016. Dimensions in millimeters. ACCESSIBLE. Able to be touched with a standard test finger or test pin. BASIC INSULATION. Insulation of HAZARDOUS LIVE parts which provides basic protection. CAT II. Measurement or overvoltage category II. For measurement per- formed on / equipment connected to the building wiring. CAT III. Measurement or overvoltage category III. For measurement performed on / equipment connected to part of a building wiring installation. CAT IV. Measurement or overvoltage category IV. For measurement performed on / equipment connected to the origin of the electrical supply to a building. CLEARANCE. Shortest distance in air between two conductive parts. CREEPAGE DISTANCE. Shortest distance along the surface of a solid insulating material between two conductive parts. CTI. Comparative Tracking Index of the insulating material in accordance with IEC 60112. DOUBLE INSULATION. Insulation comprising both BASIC INSULATION and SUPPLEMENTARY INSULATION. EN / IEC 60529:2001. The 2001 version of the European / international Very low voltages only : standard regarding the degrees of protection provided by enclosures. 33 V AC / 70 V DC, EN / IEC 61010-1:2010. The latest version (in February 2012) of the 36 A (at +40 C). European / international standard regarding the safety requirements for electrical equipment for measurement, control, and laboratory use Part 1: General requirements. Version year 2010. EN / IEC 61010-031:2008. The latest version (in February 2012) of the European / international standard regarding the safety requirements for -20 C mini., +80 C maxi. (please see above too). electrical equipment for measurement, control and laboratory use Part 031: Safety requirements for hand-held probe assemblies for electrical measure- ment and test. Version year 2008. European DirectiveRoH 2011/65/EU. LV. European Directive 2006/95/EC on the harmonisation of the laws of European REACH regulation n1907 / 2006. Member States relating to electrical equipment designed for use within certain voltage limits. (Usually called the Low Voltage Directive.) RoH compliant, Pb 4 % in conductor, Pb 0.1 % in insulator, Hg 0.1 %, Cr VI 0.1 %, MAINS. Low-voltage electricity supply system to which the equipment concerned is designed to be connected for the purpose of powering the Cd 0.01 %, PBB 0.1 %, and PBDE 0.1 %. equipment. REACH compliant, no substances from the candidate list of SVHC for authorisation at mass MAINS CIRCUIT. Circuit which is intended to be directly connected to the concentrations greater than 0.1 %. MAINS for the purpose of powering the equipment. OVERVOLTAGE CATEGORY. Numeral defining a TRANSIENT OVER- Conductor : nickel-coated brass. VOLTAGE condition. Insulators and lantern contact spring, please contact us POLLUTION. Addition of foreign matter, solid, liquid or gaseous (ionized gases), that may produce a reduction of dielectric strength or surface resistivity. Black Red POLLUTION DEGREE. Numeral indicating the level of POLLUTION that may be present in the environment. 0.005 kg. POLLUTION DEGREE 1. No POLLUTION or only dry, non-conductive POLLUTION occurs, which has no influence. Designed and manufactured in France. POLLUTION DEGREE 2. Only non-conductive POLLUTION occurs except that occasionally a temporary conductivity caused by condensation is expected. Year of 1st placing on the market 1993. REINFORCED INSULATION. Insulation which provides protection against electric shock not less than that provided by DOUBLE INSULATION. One piece per bag (in one bag : 1 metal part including 1 screw + 1 plastic part). RoH. European Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment. SOLID INSULATION. Insulating materials. SUPPLEMENTARY INSULATION. Independent insulation applied in addition to BASIC INSULATION in order to provide protection against electric shock in the event of a failure of BASIC INSULATION. TRANSIENT OVERVOLTAGE. Short duration overvoltage of a few milliseconds or less, oscillatory or non-oscillatory, usually highly damped. WORKING VOLTAGE. Highest r.m.s. value of the a.c. or d.c. voltage across any particular insulation which can occur when the equipment is supplied at rated voltage. Fichier DataSheet TENMA 1010 . 11/10/2016. Indice A. Information in this publication supersedes all earlier versions. Specifications subject to change without notice. 2016. Dimensions in millimeters.
