TLP3910(E Toshiba

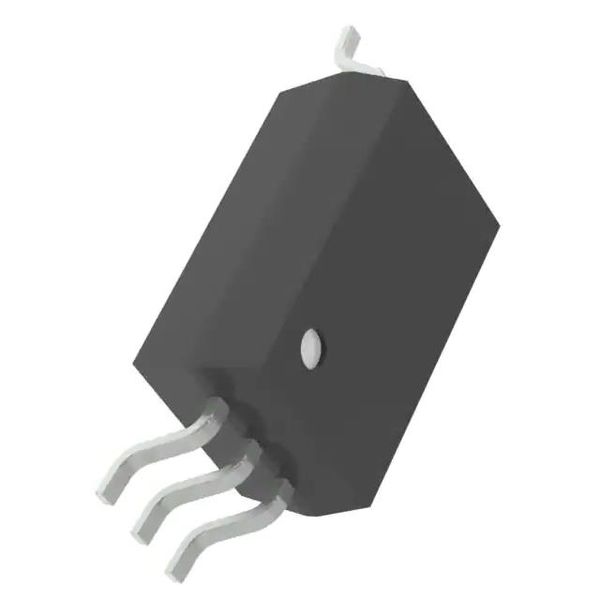

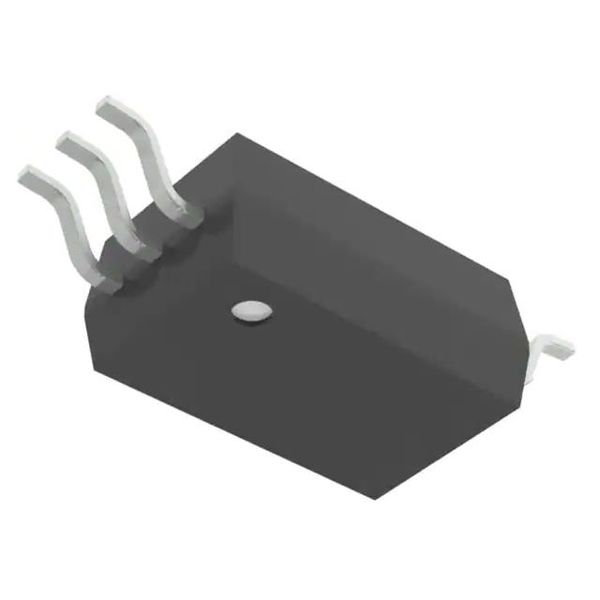

TLP3910 Photocouplers GaAAs Infrared LED & Photo Diode TLP3910 1. Applications Factory Automation (FA) Measuring Instruments MOSFET Gate Drivers Programmable Logic Controllers (PLCs) 2. General The TLP3910 is a photocoupler in the SO6L package that consists of an infrared light emitting diode optically coupled to a photodiode array. The photodiodes are connected in series, making the TLP3910 suitable for MOS gate drive applications. Also, to improve V , TLP3910 is suitable for driving Super Junction Structure (SJ) MOSFETs. OC 3. Features (1) Open voltage: 14 V (min) (2) Short current: 12 A (min) (3) Isolation voltage: 5000 Vrms (min) (4) Safety standards UL-recognized: UL 1577, File No.E67349 cUL-recognized: CSA Component Acceptance Service No.5A File No.E67349 VDE-approved: EN 60747-5-5 (Note 1) Note 1: When a VDE approved type is needed, please designate the Option (D4). Table Short-Circuit Current (Note) (Unless otherwise specified, T = 25 ) a Short-Circuit Current I SC Rank I Rank Marking Test Condition Unit SC (min) C20 C2 I = 10 mA 20 A F None C2, Blank I = 10 mA 12 F Note: Specify both the part number and a rank in this format when ordering. Example: TLP3910(C20) For safety standard certification, however, specify the part number alone. Example: TLP3910(C20,E TLP3910 Start of commercial production 2021-03 2019-2022 2022-01-11 1 Toshiba Electronic Devices & Storage Corporation Rev.3.0TLP3910 4. Packaging and Pin Assignment 1: Anode (Input) 2: N.C. (Note) 3: Cathode (Input) 4: Cathode (Output) 5: Cathode (Output) 6: Anode (Output) 11-4N1A Note: Input side is considerd 2 LEDs serial connection.(i.e. Foward mean pin 1 to 3, Reverse mean pin 3 to 1.) Don t connect anything to pin 2. 5. Mechanical Parameters Characteristics Min Unit Creepage distances 8.0 mm Clearance 8.0 Internal isolation thickness 0.4 2019-2022 2022-01-11 2 Toshiba Electronic Devices & Storage Corporation Rev.3.0
