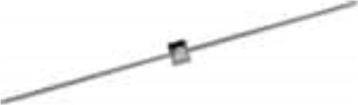

1T6 Tubes

1T1 thru 1T7 Taiwan Semiconductor CREAT BY ART Silicon Rectifiers FEATURES - Low forward voltage drop - High current capability - High reliability - High surge current capability - 3mm miniature body - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition MECHANICAL DATA Case: TS-1 TS-1 Molding compound, UL flammability classification rating 94V-0 Base P/N with suffix on packing code - halogen-free Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 1A whisker test Weight: 0.2g (approximately) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (T =25 unless otherwise noted) A PARAMETER SYMBOL 1T1 1T2 1T3 1T4 1T5 1T6 1T7 UNIT Maximum repetitive peak reverse voltage V 50 100 200 400 600 800 1000 V RRM Maximum RMS voltage V 35 70 140 280 420 560 700 V RMS Maximum DC blocking voltage V 50 100 200 400 600 800 1000 V DC Maximum average forward rectified current I 1 A F(AV) Peak forward surge current, 8.3 ms single half sine-wave I 30 A FSM superimposed on rated load Maximum instantaneous forward voltage (Note 1) V 1.0 V F 1 A 5 Maximum reverse current rated VR T =25 J I A R T =125 J 50 Typical junction capacitance (Note 2) 15 Cj pF O Typical thermal resistance R 50 C/W JA O Operating junction temperature range T - 55 to +150 J C O Storage temperature range T - 55 to +150 STG C Note 1: Pulse test with PW=300 s, 1% duty cycle Note 2: Measured at 1.0 MHz and Applied V =4.0 Volts R Document Number: DS D1401031 Version: E14 Not Recommended1T1 thru 1T7 Taiwan Semiconductor CREAT BY ART ORDERING INFORMATION PART NO. PACKING CODE GREEN COMPOUND PACKAGE PACKING CODE A0 TS-1 3,000 / Ammo box (52mm taping) A1 TS-1 3,000 / Ammo box (26mm taping) 1Tx Suffix (Note 1) R0 TS-1 5,000 / 13 Paper reel B0 TS-1 1,000 / Bulk packing Note 1: defines voltage from 50V (1T1) to 1000V (1T7) EXAMPLE GREEN COMPOUND PREFERRED P/N PART NO. PACKING CODE DESCRIPTION CODE 1T7 A0 A0 1T7 1T7 A0G 1T7 A0 G Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25 unless otherwise noted) FIG.1- MAXMUM FORWARD CURRENT DERATING FIG. 2- TYPICAL REVERSE CHARACTERISTICS CURVE 10 1. 2 TJ=125 1 0. 8 1 0. 6 0. 4 0. 1 0. 2 RESISTIVE OR INDUCTIVE LOAD TJ=25 0 0 25 50 75 100 125 150 o AMBIENT TEMPERATURE( C) 0. 01 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) FIG. 4- TYPICAL FORWARD CHARACTERISTICS FIG. 3- MAXIMUM NON-REPETITIVE FORWARD 10 SURGE CURRENT 50 40 8.3ms Single Half Wave JEDEC Method 30 1 20 10 PULSE WIDTH=300s 1% DUTY CYCLE 0 0. 1 1 10 100 0.6 0.7 0.8 0.9 1 1.1 1.2 1.3 1.4 1.5 NUMBER OF CYCLES AT 60 Hz FORWARD VOLTAGE (V) Document Number: DS D1401031 Version: E14 Not Recommended AVERAGE FORWARD RECTIFIED PEAK FORWARD SURGE CURRENT(A) CURRENT (A) INSTANTANEOUS FORWARD CURRENT INSTANTANEOUS REVERSE CURRENT (A) (A)
