L016N001AYYHET0000 Vishay

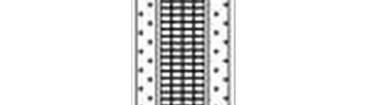

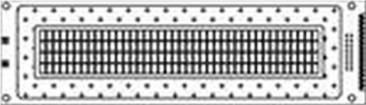

LCD-016N001A www.vishay.com Vishay 16 x 1 Character LCD FEATURES Type: Character Display format: 16 x 1 characters Built-in controller: ST 7066 (or equivalent) Duty cycle: 1/16 5 x 8 dots includes cursor + 5 V power supply (also available for + 3 V) LED can be driven by pin 1, pin 2, pin 15, pin 16, or A and K N.V. optional for + 3 V power supply Material categorization: For definitions of compliance please see www.vishay.com/doc 99912 MECHANICAL DATA ABSOLUTE MAXIMUM RATING ITEM STANDARD VALUE UNIT STANDARD VALUE ITEM SYMBOL UNIT Module Dimension 80.0 x 36.0 MIN. TYP. MAX. Viewing Area 66.0 x 16.0 Power Supply V to V - 0.3 - 7.0 DD SS V Input Voltage V - 0.3 - V Dot Size 0.55 x 0.75 I DD mm Note Dot Pitch 0.63 x 0.83 V = 0 V, V = 5.0 V SS DD Mounting Hole 75.0 x 31.0 Character Size 3.07 x 6.56 ELECTRICAL CHARACTERISTICS STANDARD VALUE ITEM SYMBOL CONDITION UNIT MIN. TYP. MAX. Input Voltage V V = + 5 V 4.7 5.0 5.3 V DD DD Supply Current I V = + 5 V -1.2 1.4 mA DD DD - 20 C 4.9 5.1 5.5 0 C 4.5 4.8 5.1 Recommended LC Driving Voltage for Normal Temperature V to V 25 C 4.1 4.5 4.7 V DD 0 Version Module 50 C 3.8 4.2 4.4 70 C 3.5 3.9 4.1 LED Forward Voltage V 25 C - 4.2 4.6 V F LED Forward Current I 25 C - 130 260 mA F EL Power Supply Current I V = 110 V , 400 Hz -- 5.0 mA EL EL AC OPTIONS PROCESS COLOR BACKLIGHT STN STN STN FSTN STN TN None LED EL CCFL Gray Yellow Blue B&W Color x xxx x x xx For detailed information, please see the Product Numbering System document. Revision: 02-Oct-12 Document Number: 37214 1 For technical questions, contact: displays vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000LCD-016N001A www.vishay.com Vishay DISPLAY CHARACTER ADDRESS CODE Display Position 123456 789 10 11 12 13 14 15 16 DD RAM Address 00 010203040506 074041424344 454647 INTERFACE PIN FUNCTION PIN NO. SYMBOL FUNCTION 1 V Ground SS 2 V + 5 V DD 3 V Contrast adjustment 0 4 RS H/L register select signal 5 R/W H/L read/write signal 6 EH L enable signal 7 DB0 H/L data bus line 8 DB1 H/L data bus line 9 DB2 H/L data bus line 10 DB3 H/L data bus line 11 DB4 H/L data bus line 12 DB5 H/L data bus line 13 DB6 H/L data bus line 14 DB7 H/L data bus line 15 A + 4.2 V for LED (R = 0 ) A 15 K Power supply for B/L (0 V) DIMENSIONS in millimeters 3.77 3.07 0.63 0.55 80.0 0.5 4.4 71.2 7.0 66.0 (VA) Dot Size 10.19 59.62 (AA) 2.45 13.5 Max. 9.7 Max. 8.0 38.1 (P2.54 x 15) 2.0 16 x 1.0 8.9 5.1 1 16 K A K A Sealing Line 0.5 Max. 4 x 2.5 PTH 1.6 1.6 4 x 5.0 PAD 4 x 1.0 PTH 2.5 75.0 LED B/L EL or NO B/L Revision: 02-Oct-12 Document Number: 37214 2 For technical questions, contact: displays vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 36.0 0.5 25.2 4.9 16.0 (VA) 9.5 6.56 (AA) 14.72 2.0 5.08 15.46 13.08 11.46 31.0 2.5 6.56 0.83 0.75
