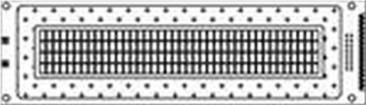

LCD-016N002C Vishay 16 x 2 Character LCD FEATURES Type: Character Display format: 16 x 2 characters Built-in controller: KS 0066 (or equivalent) Duty cycle: 1/16 5 x 8 dots includes cursor + 5 V power supply LED can be driven by pin 1, pin 2, pin 15, pin 16 or A and K N.V. optional for + 3 V power supply Optional: Smaller character size (2.95 mm x 4.35 mm) Compliant to RoHS directive 2002/95/EC MECHANICAL DATA ABSOLUTE MAXIMUM RATINGS ITEM STANDARD VALUE UNIT STANDARD VALUE ITEM SYMBOL UNIT Module Dimension 85.0 x 36.0 MIN. TYP. MAX. Viewing Area 66.0 x 16.0 Power Supply V to V - 0.3 - 7.0 DD SS V Dot Size 0.55 x 0.65 Input Voltage V - 0.3 - V I DD mm Dot Pitch 0.60 x 0.70 Note V = 0 V, V = 5.0 V Mounting Hole 80.0 x 31.0 SS DD Character Size 2.96 x 5.56 ELECTRICAL CHARACTERISTICS STANDARD VALUE ITEM SYMBOL CONDITION UNIT MIN. TYP. MAX. Input Voltage V V = + 5 V 4.7 5.0 5.3 V DD DD Supply Current I V = + 5 V - 1.2 1.5 mA DD DD - 20 C - - 5.2 0 C - - 4.2 Recommended LC Driving Voltage for Normal Temperature V to V 25 C - 3.8 - V DD 0 Version Module 50 C 3.5 - - 70 C 3.2 - - LED Forward Voltage V 25 C - 4.2 4.6 V F LED Forward Current - Array - 100 - I 25 C mA F LED Forward Current - Edge - 20 40 EL Power Supply Current I V = 110 V , 400 Hz - - 5.0 mA EL EL AC OPTIONS PROCESS COLOR BACKLIGHT STN STN STN FSTN STN TN None LED EL CCFL Gray Yellow Blue B&W Color xxxx xxx For detailed information, please see the Product Numbering System document. Document Number: 37296 For technical questions, contact: displays vishay.com www.vishay.com Revision: 29-Oct-08 1 LCD-016N002C 16 x 2 Character LCD Vishay DISPLAY CHARACTER ADDRESS CODE Display Position 12 345678 9 10 11 12 13 14 15 16 DD RAM Address 000102 030405060708 09 0A 0B 0C 0D 0E 0F DD RAM Address 404142 434445464748 49 4A 4B 4C 4D 4E 4F INTERFACE PIN FUNCTION PIN NO. SYMBOL FUNCTION 1V Ground SS 2V + 3 V or + 5 V DD 3V Contrast adjustment 0 4 RS H/L register select signal 5R/W H/L read/write signal 6E H L enable signal 7 DB0 H/L data bus line 8 DB1 H/L data bus line 9 DB2 H/L data bus line 10 DB3 H/L data bus line 11 DB4 H/L data bus line 12 DB5 H/L data bus line 13 DB6 H/L data bus line 14 DB7 H/L data bus line 15 A/V + 4.2 V for LED (R = 0 )/negative voltage output EE A 16 K Power supply for B/L (0 V) DIMENSIONS in millimeters 3.55 2.95 0.6 0.6 0.55 2.5 2.54 16 x 1.0 PTH 16 x 1.8 PAD 85.0 0.5 9.4 71.2 Pin Detail Dot Size 66.0 (VA) 12.0 H1 Max. 9.7 Max. 16.9 56.21 (AA) H2 5.1 2.45 15 16 A K 21 1.6 1.6 4 x 1.0 45.0 LED - H/L B/L 2.5 Array 80.0 4 x 2.2 PTH High Low 4 x 5.0 PAD H1 13.2 12.1 H2 8.6 7.5 www.vishay.com For technical questions, contact: displays vishay.com Document Number: 37296 2 Revision: 29-Oct-08 36.0 0.5 25.2 4.9 16.0 (VA) 10.0 11.5 (AA) 12.25 5.08 15.46 (P2.54 x 7) 17.78 7.84 13.08 11.46 31.0 2.5 5.95 0.4 5.55 0.7 0.65
