IPI051N15N5AKSA1 Infineon

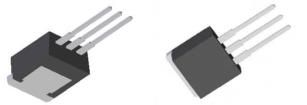

IPI051N15N5 MOSFET I-PAK OptiMOS 5 Power-Transistor , 150 V Features tab Package Excellent gate charge x RDS(on) product (FOM) Very low on-resistance R DS(on) 175 C operating temperature Pb-free lead plating RoHS compliant 1) 1 Qualified according to JEDEC for target application 2 3 Ideal for high-frequency switching and synchronous rectification Halogen-free according to IEC61249-2-21 Drain Table 1 Key Performance Parameters Pin 2, Tab Parameter Value Unit V 150 V DS Gate Pin 1 RDS(on),max (TO262) 5.1 m Source Pin 3 I 120 A D Type / Ordering Code Package Marking Related Links IPI051N15N5 PG-TO262-3 051N15N5 - 1) J-STD20 and JESD22 Final Data Sheet 1 Rev. 2.0, 2016-02-01 OptiMOS 5 Power-Transistor, 150 V IPI051N15N5 Table of Contents Description . 1 Maximum ratings 3 Thermal characteristics 3 Electrical characteristics . 3 Electrical characteristics diagrams . 5 Package Outlines 9 Revision History 10 Trademarks . 10 Disclaimer 10 Final Data Sheet 2 Rev. 2.0, 2016-02-01
