CU16025-UW6J Noritake

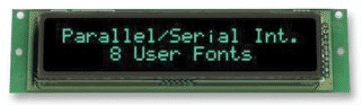

5X7 Dot Character VFD Module CU16025-UW6J 2 X 16 Characters 5mm High The module includes the Vacuum Fluorescent Display LCD Compatible Design glass, driver and micro-controller ICs with refresh RAM, character generator and interface logic. Operating Temp -40C to +85C Single 5V Supply with Power Save Mode The high speed 8 bit parallel interface is 5V CMOS compatible suitable for connection to a host CPU bus High Brightness Blue Green Display which can be set to M68 or i80 series interface by a solder Selectable 4/8 bit M68/i80 Parallel & Serial Interface ASCII + Extended Character Font link on the module. Brightness control and power down functions are provided. A full data sheet is available. 8 User Definable Character RAM 4 Level Brightness Control Function 14 x 1.0 1 14 Dimensions in mm & subject to tolerances 11.4 31.0 36.0 Mounting holes 2.5mm dia. 12.9 51.36 11.8 2.5 75.0 2.5 80.0 1.6 8.1 max 5.1 max CHARACTER FONT ELECTRICAL SPECIFICATION Parameter Symbol Value Condition Power Supply Voltage VCC 5.0VDC +/- 5% GND=0V Power Supply Current ICC 150mADC typ. Vcc=5V Logic High Input VIH 2.0VDC min. VCC=5V Logic Low Input VIL 0.8VDC max. VCC=5V Logic High Output VOH Vcc-0.8VDC min. IOH = -4mA Logic Low Output VOL 0.6VDC max. IOH =4mA The power on rise time should be less than 50ms.The inrush current at power on can be 2 x ICC. The Icc current is 10mA maximum while in power down mode. OPTICAL and ENVIRONMENTAL SPECIFICATIONS Parameter Value Character Size/Pitch (XxY mm) 2.275 x 4.759/3.275 x 5.991 Dot Size/Pitch (XxY mm) 0.359 x 0.577/0.479 x 0.697 2 Luminance 700 cd/m (204 fL) Typ. Colour of Illumination Blue-Green (Filter for more colours) Operating Temperature -40 C to +85 C Storage Temperature -50 C to +85 C Operating Humidity (non condensing) 20 to 80% RH 25 C SOFTWARE COMMANDS PIN CONNECTIONS (CN3) Instruction R/W RSD0-D7 Pin Sig Pin Sig Clear Display L L 01H 1 GND 2 VCC Cursor Return Home L L 02H-03H 3 (FNC) 4 RS Entry Mode Set L L 04H-07H 5 R/W 6 E Display ON/OFF L L 08H-0FH 7 DB0 8 DB1 JUMPER LINKS Cursor/Display Shift L L 10H-1FH 9 DB2 10 DB3 Interface M68/i80 Function Set L L 20H-3FH 11 DB4 12 DB5 When jumper link JP2 is soldered, these inputs Brightness Set L H 00H-03H 13 DB6 14 DB7 change to i80 series CPU Set CG RAM Addr. L L 40H-7FH CONTACT control lines. Set DD RAM Addr. L L 80H-E7H PIN CONNECTIONS (CN1) Pin 5= /WR Pin 6 = /RD Noritake Sales Office Tel Nos Read BUSY/Addr. H L 00H-FFH Pin Sig Pin Sig Nagoya Japan: +81 (0)52-561-9867 Pin 3 (Fnc) Input Write Data to RAM L H 00H-FFH 1 VCC 4 STB Canada: +1-416-291-2946 This is normally open circuit. Chicago USA: +1-847-439-9020 Read Data from RAM H H 00H-FFH 2 SI/SO 5 SCK If pads JP1.1 and JP1.2 are Munchen (D): +49 (0)89-3214-290 3 GND 6 NC linked. Pin 3 = /Reset. Itron UK: +44 (0)1493 601144 TIMING PARAMETERS (min) Rest Europe: +49 (0)61-0520-9220 JP6 (E)nable Cycle Time 500ns www.noritake-itron.com If JP6 is open, Parallel mode (E)nable Pulse Width 230ns Subject to change without notice. is selection. If JP6 is linked Hold after (E)nable 10ns IUK Doc Ref: 38994 Iss:1 28Aug08 serial mode selected. NORITAKE ITRON VFD MODULES 2x16, 5mm Dot CharacterX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Vacuum Fluorescent Displays - VFD category: Click to view products by Noritake manufacturer: Other Similar products are found below : M0220SD-202SDAR1-CWC GU256X64F-9900 GU140X16G-7003B GU140X32F-7003B CU20049-UW2A CU16025-UW6J CU20029- UW1J GU140X32F-7000B VFD2041 VFD2041-VPT VK162-12 VK162-12-E VK202-25 VK204-25 VK204-25-E M0216SD-162SDAR2-1 M0216SD-162SDAR8 M0220MD-202MDAR1-1 M0220MD-202MDAR1-3 CU20025-UW1J CU20045-UW5J CU20049-UW2J CU24063- Y1A CU40025-UW6J GU140X16G-7003 VK202-25-V GU256X128E-3900B M0220SD-202SDAR1-1G GP1184A01A M162MD07AA- 000 VK202-25-V-E
