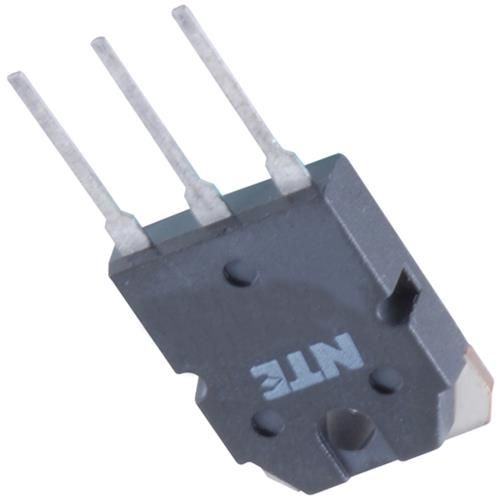

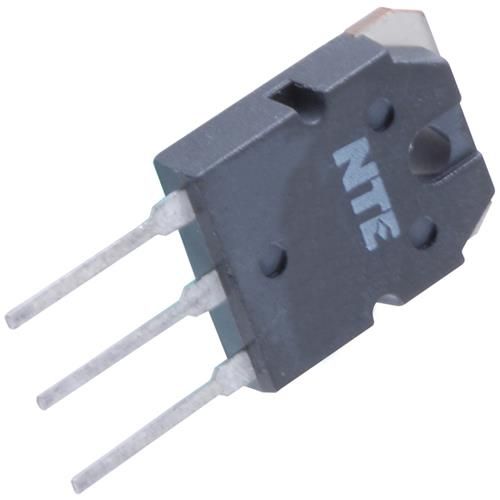

NTE2536 (NPN) & NTE2537 (PNP) Silicon Complementary Transistors High Current Switch Features: High Current Capacity Wide ASO Range Low Saturation Voltage Applications: Motor Drivers Relay Drivers Converters Absolute Maximum Ratings: (T = +25C unless otherwise specified) A Collector Base Voltage, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110V CBO Collector Emitter Voltage, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100V CEO Emitter Base Voltage, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V EBO Collector Current, I C Continuous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40A Peak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65A Base Current, I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12A B Collector Power Dissipation (T = +25C), P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150W C C Operating Junction Temperature, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150C J Storage Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 to +150C stg Electrical Characteristics: (T = +25C unless otherwise specified) A Parameter Symbol Test Conditions Min Typ Max Unit Collector Cutoff Current I V = 100V, I = 0 0.1 mA CBO CB E Emitter Cutoff Current I V = 5V, I = 0 0.1 mA EBO EB C DC Current Gain h V = 2V, I = 4A 50 140 FE CE C V = 2V, I = 16A 20 CE C Collector Emitter Saturation Volt- V I = 16A, I = 1.6A 0.8 V CE(sat) C B age Base Emitter Saturation Voltage V I = 16A, I = 1.6A 1.5 V BE(sat) C B Collector Base Breakdown Voltage V I = 1mA, I = 0 110 V (BR)CBO C E Collector Emitter Breakdown Voltage V I = 5mA, R = 100 V (BR)CEO C BE Emitter Base Breakdown Voltage V I = 1mA, I = 0 6 V (BR)EBO E C.190 (4.82) .615 (15.62) C .787 (20.0) .591 .126 (15.02) (3.22) Dia .787 (20.0) BC E .215 (5.47)
