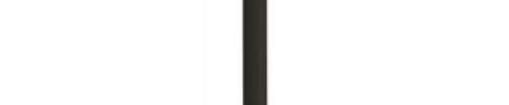

Flexible 2XSLCH LSZH Servo Cable Application This 4-core double-screened low capacitance motor supply cable is ideal for frequency converters. The screen protects against external interference pulses and ensures an interference-free transmission. Characteristics Voltage Rating : 0.6/1kV Test Voltage : 4kV Temperature Rating : Fixed: -30C to +80C Flexed: -5C to +40C Minimum Bending Radius : Fixed: 7.5 overall diameter Flexed: 15 overall diameter Cable Standards IEC 60228, DIN EN 50267-2, IEC 60754-1&2 Flame Retardant according to DIN EN IEC 60332-1-2, Low Smoke Density / Halogen free according to IEC 61034-2, IEC 60754-1/2 UK Laboratory Tested This product is subject to the Quality Assurance protocols of The Cable Lab, a UKAS accredited ISO 17025 cable testing laboratory. Testing includes vertical flame, conductor resistance, tensile & elongation, and dimensional consistency, verified to published standards and approved product drawings. Regulatory Compliance This cable meets the requirements of the Low Voltage Directive 2014/35/EU and the RoHS Directive 2011/65/EU. RoHS compliance has been tested and confirmed by The Cable Lab as meeting the requirements of the BSI RoHS Trusted TM Kitemark . Construction Conductor Class 5 flexible plain copper wires Insulation XLPE (Cross-linked Polyethylene) Separator Aluminium Tape www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 09/02/18 V1.2Flexible 2XSLCH LSZH Servo Cable Screen 1 Al/PET (Aluminium Polyester Tape) Screen 2 TCWB (Tinned Copper Wire Braid) Sheath FRNC-LSZH (Flame Retardant Non Corrosive - Low Smoke Zero Halogen) Core Identification Green/Yellow, Brown, Black and Grey Sheath Colour Black Dimensions Nominal Cross Nominal Overall No. of Nominal Weight Part Number Sectional Area Diameter Cores kg/km mm mm PP001539 1.5 9.8 159 PP001540 2.5 11.4 225 4 PP001541 4 12.7 297 PP001542 6 14.1 398 Electrical Characteristics Nominal Cross Current Carrying Capacities 30C Maximum Resistance Sectional Area Continuous Loading of Conductor at 20C mm A /km 1.5 18 13.3 2.5 26 7.98 4 34 4.95 6 44 3.3 Part Number Table Nominal Cross Reel Description Sectional Area Part Number Length mm 1.5 PP001539 2.5 PP001540 Flexible 2XSLCH LSZH 50m Servo Cable 4 PP001541 6 PP001542 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell Limited 2016. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 09/02/18 V1.2
