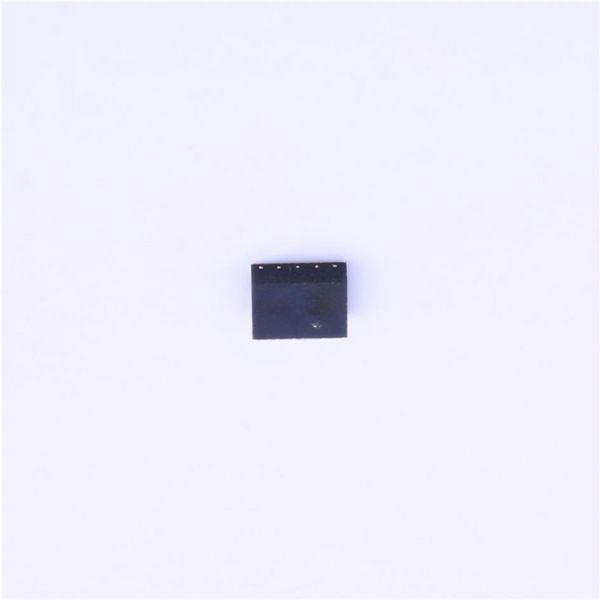

DATA SHEET SKY13416-485LF: 0.1 to 6.0 GHz SP6T Antenna Switch Applications Any 2G/3G/4G antenna diversity or LTE (TDD/FDD) transmit/receive system for which GSM transmit is not required Features Broadband frequency range: 0.1 to 6.0 GHz Low insertion loss: 0.6 dB typical 5.0 GHz High isolation: >26 dB 2.7 GHz Integrated logic Small QFN (14-pin, 2.0 x 2.0 mm) package (MSL1, 260 C per JEDEC J-STD-020) Description The SKY13416-485LF is a single pole, six-throw (SP6T) antenna Figure 1. SKY13416-485LF Block Diagram switch. The high-linearity performance and low insertion loss achieved by the SKY13416-485LF make it an ideal choice for main/diversity switching commonly used in LTE-based handsets, Switching is controlled by three CMOS/TTL-compatible control data cards, and tablets that use antenna diversity solutions. voltage inputs (V1, V2, and V3). Depending on the logic voltage The SKY13416-485LF is part of a scalable family of products that level applied to the control pins, the ANT pin is connected to one covers SP4T through SP8T switches that allow up to eight bands of six switched RF outputs (RF1 to RF6) using a low insertion loss of WCDMA/LTE: path, while the paths between the ANT pin and the other RF pins are in a high isolation state. No external blocking capacitors are SKY13414-485LF SP4T Antenna Switch (Data Sheet 201689) required on the RF paths unless VDC is externally applied. SKY13415-485LF SP5T Antenna Switch (Data Sheet 201704) The SKY13416-485LF is manufactured in a compact, 14-pin SKY13416-485LF SP6T Antenna Switch (this Data Sheet) 2.0 x 2.0 mm, Quad Flat No-Lead (QFN) package. SKY13417-485LF SP7T Antenna Switch (Data Sheet 201661) A functional block diagram is shown in Figure 1. The pin SKY13418-485LF SP8T Antenna Switch (Data Sheet 201712) configuration and package are shown in Figure 2. Signal pin assignments and functional pin descriptions are provided in The symmetric port designs provide flexibility in signal routing for Table 1. both receive diversity and higher power TD-SCDMA/TDD-LTE, WCDMA/FDD, and LTE transmit/receive applications. Skyworks Solutions, Inc. Phone 781 376-3000 Fax 781 376-3100 sales skyworksinc.com www.skyworksinc.com 201679I Skyworks Proprietary Information Products and Product Information are Subject to Change Without Notice April 1, 2019 1 DATA SHEET SKY13416-485LF: SP6T ANTENNA SWITCH Figure 2. SKY13416-485LF Pinout (Top View) 1 Table 1. SKY13416-485LF Signal Descriptions Pin Name Description Pin Name Description 1 RF5 RF I/O path 5 8 N/C Not connected 2 RF3 RF I/O path 3 9 RF2 RF I/O path 2 3 RF1 RF I/O path 1 10 RF4 RF I/O path 4 4 VDD DC power supply 11 RF6 RF I/O path 6 5 V3 DC control voltage 3 12 N/C Not connected 6 V2 DC control voltage 2 13 ANT Antenna port 7 V1 DC control voltage 1 14 N/C Not connected 1 Bottom ground paddles must be connected to ground. Skyworks Solutions, Inc. Phone 781 376-3000 Fax 781 376-3100 sales skyworksinc.com www.skyworksinc.com 2 April 1, 2019 Skyworks Proprietary Information Products and Product Information are Subject to Change Without Notice 201679I
