TORX1355(F) Toshiba

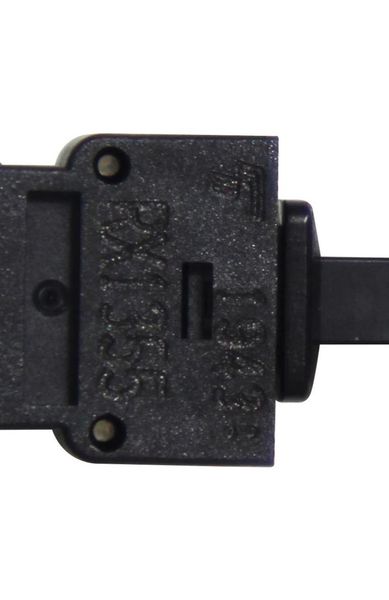

TORX1355(F) FIBER OPTIC RECEIVING MODULE TORX1355(F) GENERAL PURPOSE OPTICAL RECEIVING MODULE For JIS F05 Optical Connector CMOS level Interface +5 V Single Power Supply ATC (Automatic Threshold Control) circuit is used for stabilized output at a wide range of optical power level. Low current consumption 1.5 mA (max) (Active) 70 A (max) (Standby) 1. Absolute Maximum Ratings (Ta = 25C) Characteristics Symbol Rating Unit Storage Temperature T 40 to 95 C stg Operating Temperature T 40 to 85 C opr Supply Voltage V 0.5 to 6 V CC High Level Output Current I 5 mA OH Low Level Output Current I 5 mA OL Soldering Temperature T 260 (Note 1) C sol Note 1: Soldering time 10 s (More than 1 mm apart from the package). Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) May cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/ current/ voltage, etc.) are within the absolute maximum ratings and the operating ranges. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (Handling Precautions/derating Concept and Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc.). 2. Operating Ranges Characteristics Symbol Min Typ. Max Unit Supply Voltage V 4.75 5.0 5.25 V CC Data Rate DC - 10 Mb / s High Level Output Current I - - 0.4 mA OH Low Level Output Current I - - 0.4 mA OL Start of commercial production 2015-05 2020-03-12 2015-2020 Toshiba Electronic Devices & Storage Corporation 1 TORX1355(F) 3. Electrical and Optical Characteristics (Ta = 25C, Vcc = 5 V) Characteristics Symbol Test Condition Min Typ. Max Unit Data Rate NRZ Code (Note 2) DC - 10 Mb / s Transmission Distance(Note 4) Using APF (Note 3) and TOTX1350(F) 0.2 - 10 m Using TOTX1350(F) and TOCA1300 - 23.6 - mm Transmission Distance(Note 5) Using TOTX1350(F) and TOCA1301 - 34.0 - mm Pulse Width Distortion tw 30 - 30 % (Note 4) (Note 6) Maximum Receivable Power (Note 7) P Using APF (Note 3), DC to 10 Mb / s 0 - - dBm MAX Minimum Receivable Power (Note 7) P Using APF (Note 3), DC to 10 Mb / s - - 19 dBm MIN Active I V = 5.25 V, C = 10 pF - 0.6 1.5 mA CC(1) CC L (Optical flux on) Current Consumption Standby I V = 5.25 V, C = 10 pF - - 70 A CC(2) CC L (No optical flux on) High Level Output Voltage V V = 4.75 V, I = -0.4 mA 4.2 4.6 - V OH CC OH Low Level Output Voltage V V = 4.75 V, I = 0.4 mA - 0.1 0.4 V OL CC OL Note 2: High level output when optical flux is received. Low level output when it is not received. Note 3: All Plastic Fiber (980 m core / 1000 m cladding, NA = 0.5), Polished surface. Note 4: A value changes with LED drive circuits. Note 5: A distance between fixing pin of TOTX1350(F) and fixing pin of TORX1355(F) when they connect with optical adapter (TOCA1300 or TOCA1301). Note 6: Between input of driver circuit of TOTX1350(F) and output of TORX1355(F). 9 Note 7: BER 10 , Valued by peak. 4. Application Circuit Fiber optic connector or optical adapter insertion side TORX1355(F) Soldered to PC board Soldered to PC board Less than 7 mm 0.1 F 47 H Vcc GND Output (Bottom View) 5. Applicable Optical Fiber with Fiber Optic Connectors All Plastic Fiber (980 m core / 1000 m cladding), NA = 0.5 F05 type optical connector with polished surface. 2020-03-12 2015-2020 Toshiba Electronic Devices & Storage Corporation 2
