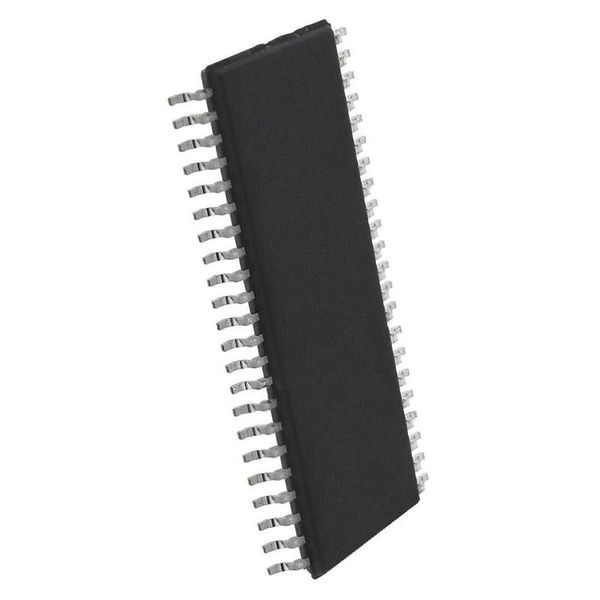

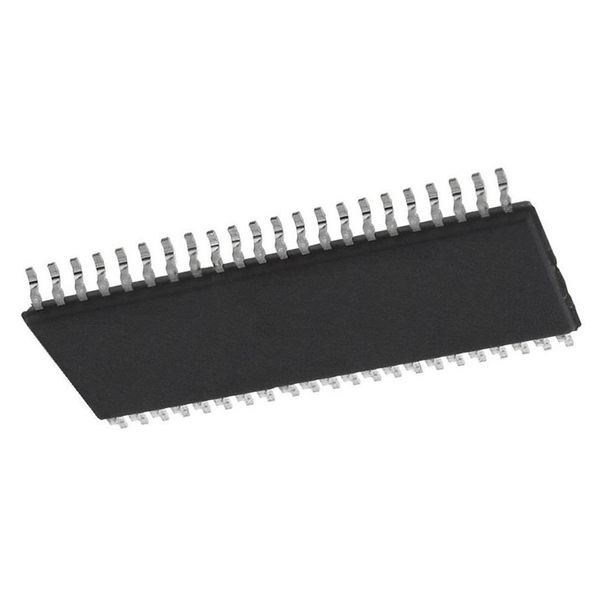

CY7C1049GN 4-Mbit (512K words 8-bit) Static RAM 4-Mbit (512K words 8-bit) Static RAM Features Functional Description High speed CY7C1049GN is a high-performance CMOS fast static RAM device organized as 512K words by 8-bits. t = 10 ns AA Data writes are performed by asserting the Chip Enable (CE) and Low active and standby currents Write Enable (WE) inputs LOW, while providing the data on I/O 0 Active current: I = 38 mA typical CC through I/O and address on A through A pins. 7 0 18 Standby current: I = 6 mA typical SB2 Data reads are performed by asserting the Chip Enable (CE) and Operating voltage range: 1.65 V to 2.2 V, 2.2 V to 3.6 V, and Output Enable (OE) inputs LOW and providing the required 4.5 V to 5.5 V address on the address lines. Read data is accessible on the I/O lines (I/O through I/O ). 0 7 1.0 V data retention All I/Os (I/O through I/O ) are placed in a high-impedance state 0 7 TTL-compatible inputs and outputs during the following events: Pb-free 36-pin SOJ and 44-pin TSOP II packages The device is deselected (CE HIGH) The control signal OE is de-asserted The logic block diagram is on page 2. Product Portfolio Power Dissipation Speed Operating I , (mA) (ns) CC Product Range V Range (V) Standby, I (mA) CC SB2 f = f max 10/15 1 1 Typ Max Typ Max CY7C1049GN18 Industrial 1.65 V2.2 V 15 40 6 8 CY7C1049GN30 2.2 V3.6 V 10 38 45 CY7C1049GN 4.5 V5.5 V 10 38 45 Note 1. Typical values are included only for reference and are not guaranteed or tested. Typical values are measured at V = 1.8 V (for a V range of 1.65 V2.2 V), CC CC V = 3 V (for a V range of 2.2 V3.6 V), and V = 5 V (for a V range of 4.5 V5.5 V), T = 25 C. CC CC CC CC A Cypress Semiconductor Corporation 198 Champion Court San Jose, CA 95134-1709 408-943-2600 Document Number: 002-10613 Rev. *C Revised November 14, 2017CY7C1049GN Logic Block Diagram CY7C1049GN INPUTBUFFER A0 A1 A2 A3 512Kx8 I/O I/O 0 7 A4 RAMARRAY A5 A6 A7 A8 A9 COLUMN DECODER WE CE OE Document Number: 002-10613 Rev. *C Page 2 of 17 ROWDECODER A10 A11 A12 A13 A14 A15 A16 A17 A18 SENSE AMPLIFIERS
