IM564X6DXKMA1 Infineon

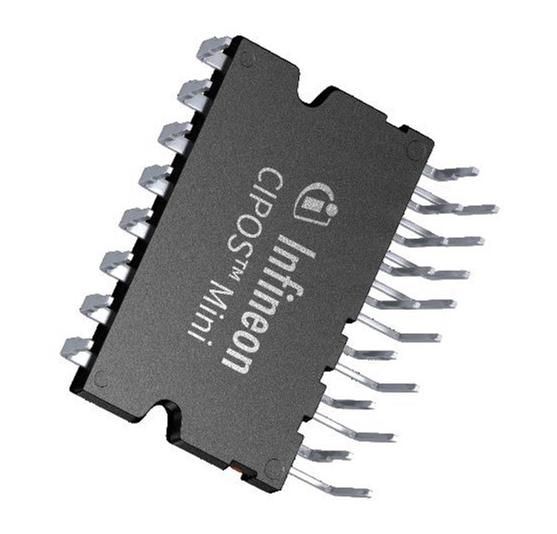

IM564-X6D/IM564-X6DS Datasheet CIPOS Mini IM564 IM564-X6D/IM564-X6DS Description The CIPOS IM564 product family (PFC-integrated IPM) offers the chance for integrating various power and control components of inverter and single boost PFC stages to increase reliability and optimize PCB size and system cost. It is designed to control three-phase motors in variable speed drives for applications such as air- conditioners and pumps. The package concept is specially adapted to power applications, which need good thermal conduction and electrical isolation, but also less EMI and overload protection. To deliver excellent electrical performance, the IM564 product family incorporated Infineons leading-edge TRENCHSTOP IGBTs, anti-parallel diodes, and an optimized SOI gate driver for three-phase inverter stage, and a CoolMOS Power MOSFET and a rapid switching emitter controlled diode for single boost PFC stage. Features Package Fully isolated Dual In-Line molded module Very low thermal resistance due to DCB substrate Lead-free terminal plating RoHS compliant Inverter TRENCHSTOP IGBTs for Inverter Rugged SOI gate driver technology with stability against transient and negative voltage Allowable negative V potential up to -11 V S for signal transmission at V = 15 V BS Integrated bootstrap functionality Over current shutdown Built-in NTC thermistor for temperature monitor Under-voltage lockout at all channels Low-side common emitter Sleep function Fast track shutdown Cross-conduction prevention All of 6 switches turn off during protection PFC CoolMOS Power MOSFET for PFC Rapid switching emitter controlled diode Potential applications Air-conditioners, Fans, Pumps, Low power motor drives Datasheet Please read the Important Notice and Warnings at the end of this document Verison 2.3 www.infineon.com page 1 of 26 2021-12-21 CIPOS Mini IM564 IM564-X6D/IM564-X6DS Product validation Product validation Qualified for industrial applications according to the relevant tests of JEDEC47/20/22. Table 1 Product Information Standard Pack Base Part Number Package Type Remarks Form MOQ IM564-X6D DIP 36x21D 14 pcs / Tube 280 pcs IM564-X6DS DIP 36x21D 14 pcs / Tube 280 pcs Extended stand-off Datasheet 2 of 26 Verison 2.3 2021-12-21
