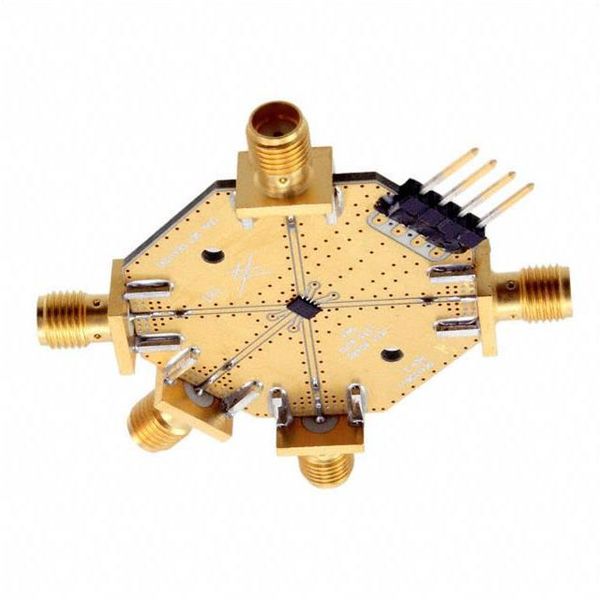

SKY13322-375LF-EVB Skyworks

DATA SHEET SKY13322-375LF: 20 MHz-6.0 GHz GaAs SP4T Switch Applications Description The SKY13322-375LF is a GaAs FET I/C single-pole, four-throw Multiband telecommunications up to 6 GHz (SP4T) switch. This general purpose switch is an ideal choice for a variety of multiband telecommunication applications up to Features 6 GHz. The switch is manufactured in a compact, 2 x 3 mm, 10-pin Broadband frequency range: 20 MHz to 6.0 GHz exposed pad plastic Micro Leadframe Package Dual (MLPD) Low insertion loss: 0.45 dB 1 GHz package. Very high isolation: 28 dB 1 GHz A functional block diagram is shown in Figure 1. The pin Excellent linearity peformance: P1dB = +30 dBm 3.3 V configuration and package are shown in Figure 2. Signal pin Operating voltage range from 1.8 to 5.0 V assignments and functional pin descriptions are provided in Table 1. Small, MLPD (10-pin, 2 x 3 mm) package (MSL1, 260 C per JEDEC J-STD-020) J4 10 J4 J2 J2 1 2 V4 V2 9 RFC 3 8 RFC N/C 7 V3 V1 4 J1 J3 J1 5 6 J3 S1537 S1538 Figure 1. SKY13322-375LF Block Diagram Figure 2. SKY13322-375LF Pinout 10-Pin MLPD (Top View) Skyworks Solutions, Inc. Phone 781 376-3000 Fax 781 376-3100 sales skyworksinc.com www.skyworksinc.com 201098D Skyworks Proprietary Information Products and Product Information are Subject to Change Without Notice October 6, 2010 1 DATA SHEET SKY13322-375LF SP4T SWITCH Table 1. SKY13322-375LF Signal Descriptions Pin Name Description Pin Name Description 1 J2 RF output (Note 1) 6 J3 RF output (Note 1) 2 V2 DC control voltage 7 V3 DC control voltage 3 N/C No connection 8 RFC RF common input (Note 1) 4 V1 DC control voltage 9 V4 DC control voltage 5 J1 RF output (Note 1) 10 J4 RF output (Note 1) Note 1: A 47 pF blocking capacitor is required for >1 GHz operation. Use larger value capacitors for lower frequency operation. Table 2. SKY13322-375LF Absolute Maximum Ratings Parameter Symbol Minimum Typical Maximum Units Input power PIN +33 dBm Voltage range VCTL 6 V Storage temperature TSTG 65 +150 C Operating temperature TOP 40 +85 C Note: Exposure to maximum rating conditions for extended periods may reduce device reliability. There is no damage to device with only one parameter set at the limit and all other parameters set at or below their nominal value. Exceeding any of the limits listed here may result in permanent damage to the device. CAUTION: Although this device is designed to be as robust as possible, Electrostatic Discharge (ESD) can damage this device. This device must be protected at all times from ESD. Static charges may easily produce potentials of several kilovolts on the human body or equipment, which can discharge without detection. Industry-standard ESD precautions should be used at all times. Table 3. SKY13322-375LF Recommended Operating Conditions Parameter Symbol Minimum Typical Maximum Units Frequency f 0.02 6.0 GHz Control voltage: Low VCTL L 0 0.2 V High VCTL H 1.8 3.3 5.0 V Typical performance characteristics of the SKY13322-375LF are Electrical and Mechanical Specifications illustrated in Figures 3 through 8. The absolute maximum ratings of the SKY13322-375LF are provided in Table 2. The recommended operating conditions are The state of the SKY13322-375LF is determined by the logic specified in Table 3 and electrical specifications are provided in provided in Table 5. Table 4. Skyworks Solutions, Inc. Phone 781 376-3000 Fax 781 376-3100 sales skyworksinc.com www.skyworksinc.com 2 October 6, 2010 Skyworks Proprietary Information Products and Product Information are Subject to Change Without Notice 201098D
